Main features

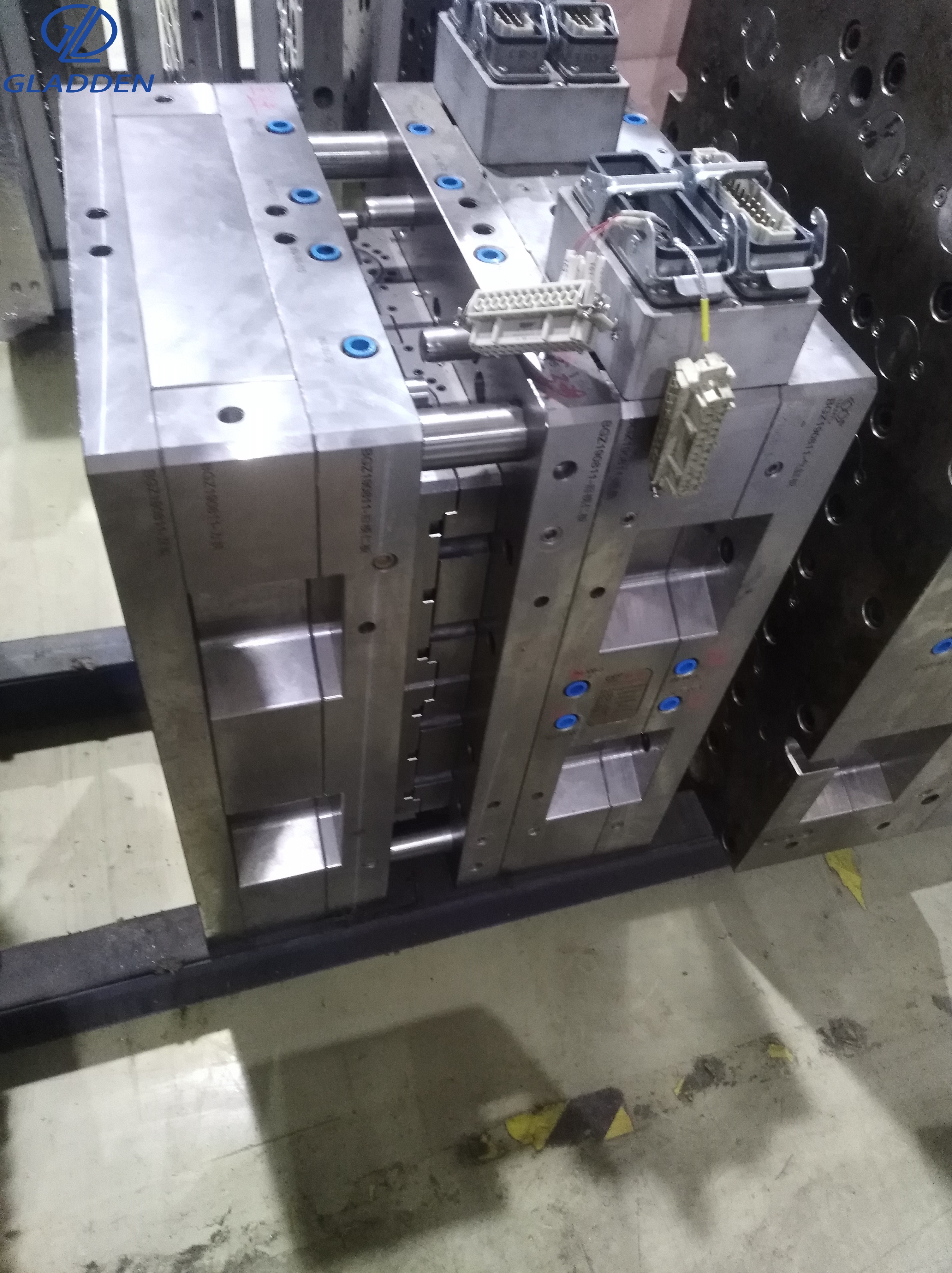

Using needle valve hot runner mold.
The mold life is guaranteed to be 3-5 million times.
Advanced hot runner design, heating temperature is more uniform, improving the quality of plastic product.
The taper at both ends is ground by Swiss STUDER high-precision grinding machine to ensure that the matching precision of each component is less than 0.01mm.
the average wall thickness deviation of the product is less than 0.1mm.
The bottom of the injection cavity adopts independent and more reasonable cooling water channel design, which greatly shortens the molding cycle of the preform.

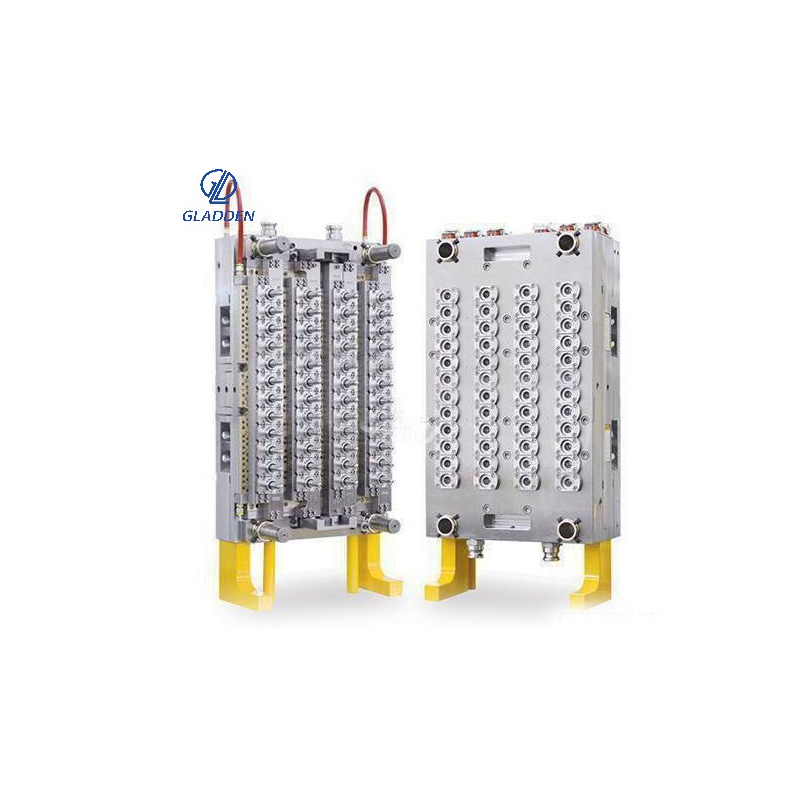

Mold Parameters for PP Preform Injection Mold (with hanger) | ||||||
Mold Cavity | Size(ml) | Mold size(L*W*T) | Weight(kg) | Power(kw) | Cycle time(s) | Capacity (pcs/hr) |
32 | 100 | 800*650 | 2800 | 20.2 | 25-28 | 4114-4608 |
250 | 28-32 | 3600-4114 | ||||
500 | 32-35 | 3291-3600 | ||||
1000 | 38-42 | 2742-3031 | ||||
48 | 100 | 990*650 | 3200 | 30.1 | 25-28 | 6171-6912 |
250 | 28-32 | 5400-6171 | ||||
500 | 32-35 | 4937-5400 | ||||
1000 | 38-42 | 4114-4547 | ||||
56 | 100 | 1100*650 | 3500 | 50 | 25-28 | 7199-8064 |
250 | 28-32 | 6300-7199 | ||||
500 | 32-35 | 5759-6300 | ||||
1000 | 38-42 | 4799-5305 | ||||
Remarks：preform capacity depends on granule and thickness. Bigger cavity mold is availbale as per customers' requirement | ||||||
