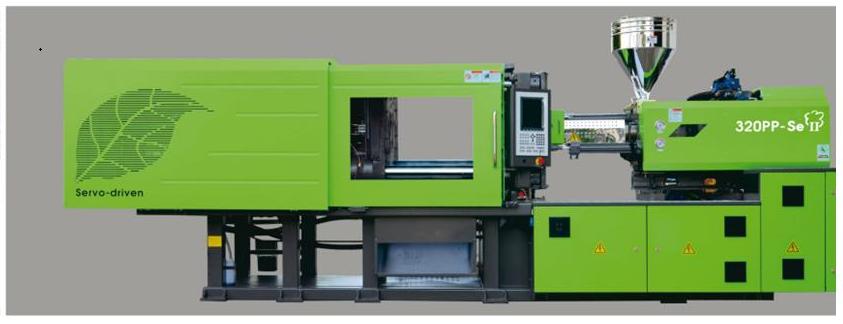

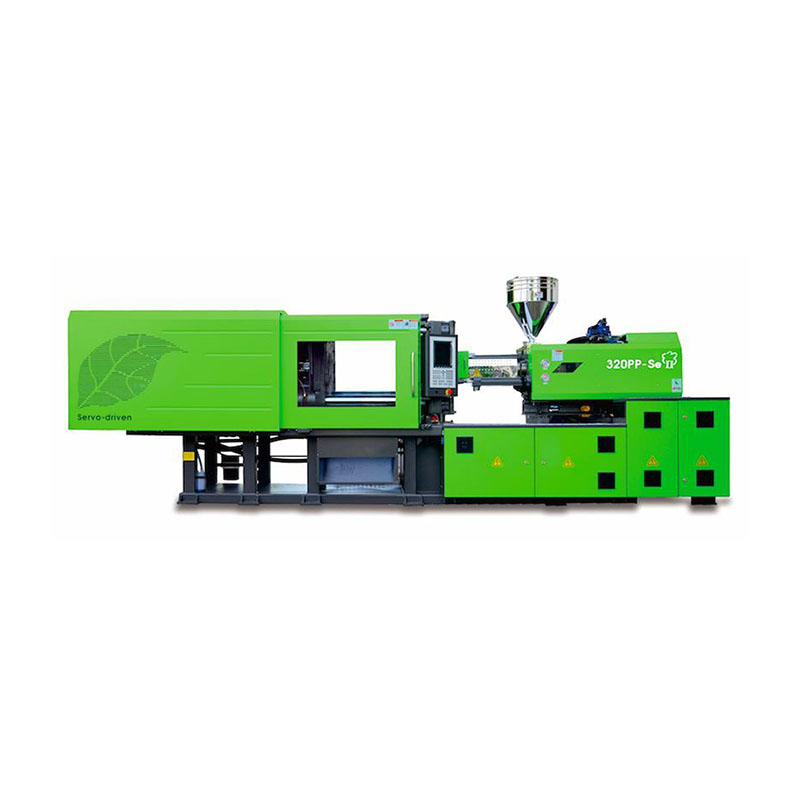

Main application and feature
Using servo motor to control oil circuit, AC servo motor realizes low-speed smoothly control, hydraulic energy consumption is the lowest, avoiding oil temperature rise, effectively reducing cooling water consumption, compared with traditional injection molding our machine can save energy 25~75%;
Large diameter screw / large injection stroke, the amount of injection is 50% larger than conventional machines
Main features
Excellent energy-saving effect, 30% higher energy saving than traditional variable pump.
High repeatability on molding, servo-driven control system.
Stable movement, better oil temperature control.
Hydraulic servo principleS09 smart software control and remote monitoring (optional).
High perfomance European B&R control system
Item | Unit | 300PP-SeⅢ | 530PP-SeⅢ |
Screw diameter | mm | 85/94 | 94 /105 |
Theoretical shot volume | cc | 2776 | 3810 |
Shot weight (PP) | g | 2026 | 2743 |
Distance btwn. Tie bars（W x V） | mm | 660*860 | 840X830 |
Min mould dimension（W x V） | mm | 460*660 | 580X580 |
Total power | kw | 137.05 | 151.51 |
Machine Dimensions | m | 8.4*1.8*2.1 | 9.6x2.2x2.4 |
Net weight | ton | 14.4 | 20 |
Remarks: the actual output depends on the preform quality and bottle shape, can be customized according to customers' requirement. | |||
Any questions? Feel free to contact us!
Coco Gan (sales manager)
Hunan Gladden Pharma Industries Co., Ltd.
Add: Shanshui Wan, Xiang Long Street, Changsha,
Hunan, China, Postal Code 410100
Email: cocogan188@163.com
TEL：+86-731-86206813
Mobile/Whatsapp/Wechat/imo: +86-13667331852
LinkedIn: www.linkedin.com/in/coco-gan-pharmamachinery
